180kw Geothermal Borehole Water Well Drilling Machine

Name: 180kw Geothermal Borehole Water Well Drilling Machine
Brand: Kaishan
Price: 15 USD

Quality 180kw Geothermal Borehole Water Well Drilling Machine wholesale

Brand Name : Kaishan

Model Number : KW180

Certification : ISO9001 CE

Place of Origin : Zhejiang China

MOQ : 1pcs

Price : $15,000.00 - $18,500.00 / Unit

Payment Terms : L/C, T/T, Western Union

Delivery Time : 10-50 days after the payment

Packaging Details : Directly fixed in container

Type : Rotary Drilling Rig

Usage : Water Well

Power Type : Diesel

Voltage : Diesel engine

Contact Now

kw 180 geothermal multifunctional borehole water well drilling machine rig

	multifunctional dril rig of geothermal well
model of drill rig	KW180
drilling hardness	f=6-20
drilling diamete	φ105-202mm
maximum depth of drilling	180m
weight of complete vehicle	4500kg
Ground clearance	280mm
climbing capacity	15°
DTH hammer	K4K5K6
air consumption	19-30m³/min
supporting power	Yuchai YCD4R23T8-80(59KW/2400r/min)
power parameters	58kw/2200r/min
travelling speed	0-2km/h
rotary torque	4200N.m
Rotary speed	0-100rpm
lifting menthod	Oil cylinder-leaf chain
rated lifting force	50KN
feed strock	2000mm
advancing speed of sliding plate	15-51m/s
lifting speed of sliding plate	8-26m/s
volume of hydraulic oil tank	200L
volume of diesel oil tank	60L
drilling method	down-the-hole hammer or mud,etc
supporting drilling rig	φ762m or φ892m
Dimension	460015502350mm

Company Profile

Quzhou Jugong Machinery Co.,Ltd.specialized in machine R&D and manufacturing for 10 years. Our product cpvers air compressors,jack hammer,drill rig,drill rig,parts,booster,tunnel shotcreting machine and other machinery hardware product etc.

Our products are popular in more than 50 areas, such as Europe , South America, Southeast Asia, the middle East and etc.

We have advanced new design every year. We are always ready to provide quality products and good after-sales service for every customer. As Chinese professional machinery manufacturer and exporter, we sincerely hope to eastablish business relations with your esteemed corporations.

Product Tags:

Multifunctional Water Well Drilling Machine

180kw Water Well Drilling Machine

Geothermal Borehole Drill Rig

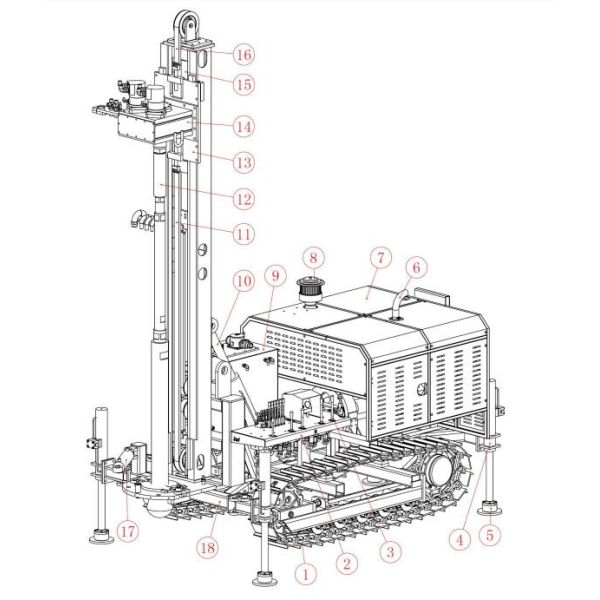

180kw Geothermal Borehole Water Well Drilling Machine Images
